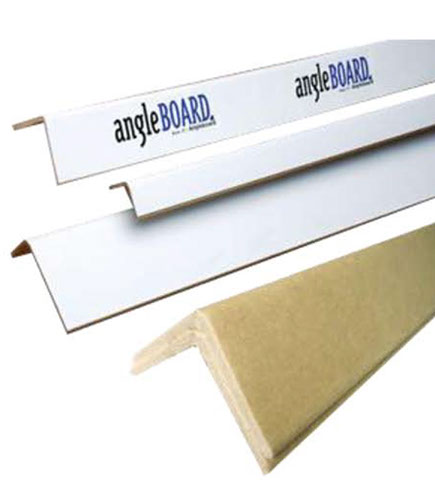

Angle Board

Home / Services / Angle Board

    Composition

    Angle Board Specification Sheet

    Performance

    Sizes Available

• 100% paper / Fully Wrapped

• Environmentally friendly glue

• Standard brown (White optional)

• 100% paper / Fully Wrapped

• Environmentally friendly glue

• Standard brown (White optional)

Leg 1

Leg 2

Thickness (mm)

(Leg Measurements taken externally)

    Tolerances

25

35

50

60

70

80

25

35

50

60

70

80

2

2/3/4/5*

2/3/4/5*

2/3/4/5/6*

2/3/4/5/6*

2/3/4/5/6*

• Length

• Thickness

• Legs

• Angle

: +/-5 mm

: +/· 0.4 mm (Avg of 2 legs) : +/·5 mm

: +/· 10•

• ·Note 0.5mm increments on thickness available on some sizes

• · Lengths available 50mm up to 6,000mm

    Remarks

    Options

• Other sizes/tolerances/printing on demand.

• Due to recycled material, there may be colour variations on finished product.

• Self adhesive tape (One or two legs)

• Sawing to short lengths(+/- 2mm on length)

• Offset leg lengths available

• White wrap available

    Printing

Optional one colour

    Angle Board "Notched" Specification Sheet

    Composition

    Performance

    Sizes Available

• 100% paper / Fully Wrapped

• Environmentally friendly glue

• Standard brown (White optional)

• Good strength & Consistency

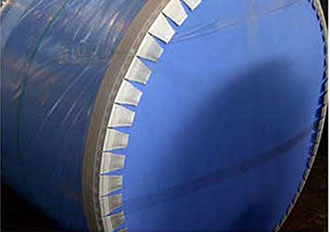

• Excellent protection for coils/rolls (steel/paper etc)

• 100 % recyclable material

• Fully Recyclable as paper

Leg 1

Leg 2

Thickness (mm)

(Leg Measurements taken externally)

    Tolerances

35

50

60

70

80

35

50

60

70

80

2/3*

2/3*

2/3*

2/3*

2/3*

• Length

• Thickness

• Legs

• Angle

: +/-5 mm

: +/· 0.4 mm (Avg of 2 legs) : +/·5 mm

: +/· 10•

• · Lengths available 50mm up to 6,000mm

    Options

    Remarks

• Due to recycled material, there may be colour variations on finished product.

• Self adhesive tape (One or two legs)

• Offset leg lengths available

• White wrap available

    Printing

Optional one colour
